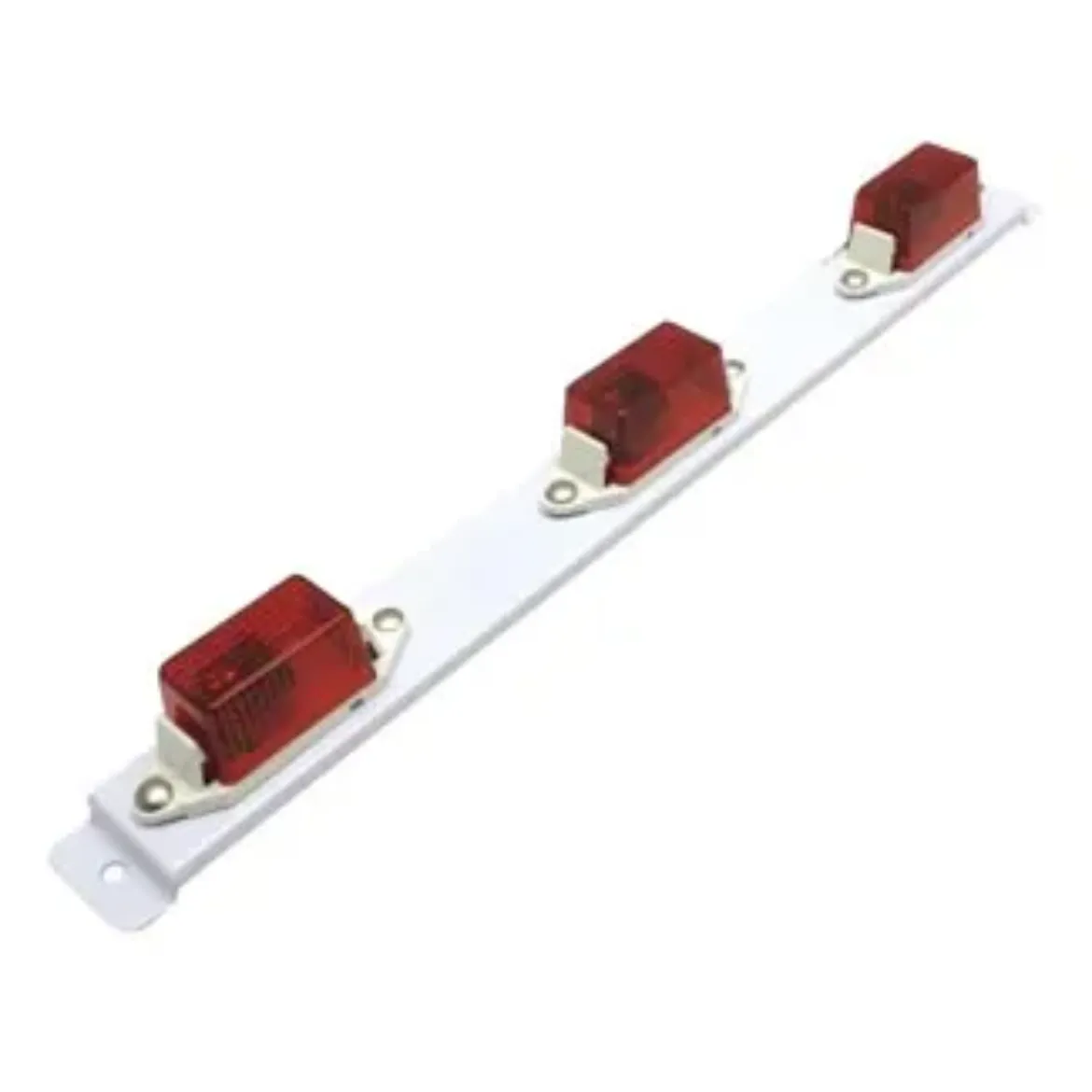

The Red Mini Incandescent Trailer Identification Light Bar provides traditional three-light identification lighting for wide trailers using a compact, serviceable incandescent design.
The assembly features three red marker lights mounted to a powder-coated white steel base and measures 16-5/8" long. It is specifically designed as an identification light bar for trailers over 80 inches wide.
Three-Light Red Identification Bar
The assembly combines three red incandescent lights on a single mounting base, providing the traditional three-light configuration used for rear trailer identification lighting.
Customers may search for this style as a:
- Trailer identification light bar
- Trailer ID light bar
- 3-light trailer bar
- Three-light trailer ID bar
- Red clearance light bar
- Incandescent trailer light bar
- Over 80-inch trailer light bar
Traditional Incandescent Lighting
Unlike an LED identification bar, this model uses three replaceable incandescent bulbs.
The exact configuration uses 194/193-style bulbs, allowing individual bulbs to be serviced rather than replacing the complete bar when a bulb burns out.
This makes it a strong replacement option for customers wanting to maintain the original incandescent lighting configuration on an older trailer, camper, or RV.
White Powder-Coated Steel Base
The three lights are mounted to a white powder-coated steel base. The powder coating provides corrosion resistance while maintaining the traditional white-base appearance commonly found on enclosed trailers and RV applications.
Surface-Mount, Single-Wire Design
The identification bar is designed for surface mounting and uses a single power wire, with the electrical ground completed through the mounting hardware. Mounting hardware is not included.
This wiring configuration is important when replacing an existing bar because similar-looking identification lights may use different grounding methods.
Specifications
| Specification | Details |
|---|
| Product Type | Trailer Identification Light Bar |
| Lighting Technology | Incandescent |
| Illumination Color | Red |
| Lens Color | Red |
| Number of Lights | 3 |
| Number of Bulbs | 3 |
| Bulb Type | 194 / 193 |
| Voltage | 12V DC |
| Base Material | Steel |
| Base Finish | Powder-Coated White |
| Overall Length | 16-5/8" |
| Height | 1" |
| Depth | 1-7/16" |
| Mounting Hole Spacing | 16-1/8" Center-to-Center |
| Mounting Style | Surface Mount |
| Wiring | 1-Wire |
| Grounding | Through Mounting Hardware |
| Primary Function | Identification Lighting |
| Typical Position | Rear |
These specifications match the Peterson 428000 / M107-3R mini incandescent identification bar configuration.
Features
- Three red incandescent identification lights
- Traditional mini trailer ID bar design
- Three replaceable 194/193 bulbs
- Red lenses
- 16-5/8" overall length
- White powder-coated steel base
- 12V DC operation
- Surface-mount installation
- Single-wire electrical connection
- Grounds through mounting hardware
- 16-1/8" mounting-hole centers
- Designed for trailers over 80" wide
- Serviceable incandescent design
- Individual light assemblies can be replaced
- Excellent replacement for compatible older trailer ID bars
Applications & Compatibility
The Red Mini Incandescent Trailer Identification Light Bar is particularly suited to compatible:
- Enclosed trailers
- Cargo trailers
- Equipment trailers
- Flatbed trailers
- Utility trailers
- Horse trailers
- Car haulers
- Large boat trailers
- Travel trailers
- Fifth wheels
- Campers
- RVs
- Motorhomes
- Commercial trailers
- Specialty trailers
Designed for Trailers Over 80" Wide
One of the strongest search opportunities for this product is its use as a three-light identification bar for trailers over 80 inches wide.
That means customers may search for the product without knowing the term "identification light," using phrases such as:
3 RED TRAILER LIGHTS + OVER 80" TRAILER + REAR LIGHT BAR
Including these search variations helps capture buyers searching by the lighting requirement rather than by product name.
Useful Replacement Cross References
This configuration is listed as an exact replacement option for:
- Grote #49112
- Truck-Lite #1508R
- Optronics #MC99RB
These cross references can be particularly valuable for customers searching by an existing light-bar number.
Important Fitment Note
Before ordering, verify:
- 16-5/8" overall length
- 16-1/8" mounting-hole spacing
- Three-light configuration
- Red lenses
- Incandescent lighting
- 194/193 bulb configuration
- 12V electrical system
- Single-wire connection
- Ground-through-mounting configuration
- Existing mounting surface
Mounting hardware is not included with this configuration.
Marketing Callout
3 RED LIGHTS. CLASSIC INCANDESCENT DESIGN. WHITE STEEL BASE.
A traditional 16-5/8" rear trailer identification light bar built for compatible wide-trailer applications.
