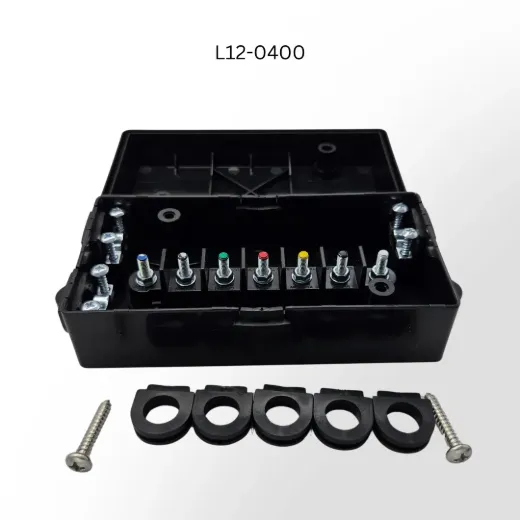

The 7-Pole Black Trailer Wiring Junction Box provides a clean, organized connection point between a compatible 7-way trailer harness and the trailer's individual electrical circuits.
Instead of relying on multiple exposed wire splices, the junction box brings trailer wiring connections together in one centralized location, helping create a cleaner electrical installation that's easier to inspect, troubleshoot, repair, or modify.
The 7-pole configuration is designed for compatible trailer wiring systems using multiple electrical circuits. Depending on the specific trailer configuration, these circuits may support functions such as running lights, stop and turn signals, electric trailer brakes, auxiliary power, reverse lights, and ground.
Because trailer wiring configurations can vary, each circuit should be identified and verified during installation rather than relying solely on wire color.
For trailer manufacturers and OEM installations, a centralized junction box provides an organized way to transition from the main trailer wiring harness to individual electrical systems throughout the trailer.
It's equally useful for replacement and repair applications. Trailer wiring is exposed to vibration, moisture, road debris, corrosion, and repeated service. A junction box makes electrical connections more accessible when troubleshooting lighting, brake, power, or other trailer wiring issues.
The durable black enclosure helps contain the electrical connections while creating a clean, professional appearance when mounted to a compatible trailer frame or protected installation location.
This junction box is suitable for a wide range of compatible applications, including cargo trailers, enclosed trailers, utility trailers, equipment trailers, commercial trailers, travel trailers, RVs, toy haulers, and specialty trailer builds.
Whether you're building a new trailer wiring system or cleaning up an existing installation, this 7-Pole Trailer Junction Box provides a centralized solution for managing compatible 7-way trailer harness connections.
Specifications
| Specification | Details |
|---|
| Product Type | Trailer Wiring Junction Box |
| Number of Poles | 7 |
| Wiring Configuration | 7-Pole / 7-Way Compatible |
| Color | Black |
| Function | Trailer Wiring Connection / Distribution |
| Application | Trailer Electrical Wiring |
| Installation Type | Replacement / OEM / New Installation |
| Primary Markets | Trailer / RV / Commercial Trailer / OEM |
Features
- 7-pole trailer wiring junction box
- Designed for compatible 7-way trailer wiring systems
- Provides a centralized trailer wiring connection point
- Helps organize multiple electrical circuits
- Cleaner alternative to multiple exposed wire splices
- Makes wiring easier to inspect and troubleshoot
- Useful for trailer-lighting connections
- Suitable for compatible electric trailer-brake wiring
- Useful for auxiliary electrical circuits
- Black enclosure
- Excellent for cargo trailers
- Ideal for enclosed trailers
- Great for utility and equipment trailers
- Suitable for RV and travel-trailer applications
- Excellent for commercial and specialty trailers
- Useful for OEM trailer manufacturing
- Great for replacement and custom wiring installations
Applications & Compatibility
Designed for compatible 7-way / 7-pole trailer electrical systems requiring a centralized location for wiring-harness connections.
Common applications may include cargo trailers, enclosed trailers, utility trailers, equipment trailers, commercial trailers, travel trailers, fifth wheels, toy haulers, RVs, specialty trailers, and OEM trailer builds.
Depending on the trailer's electrical configuration, a 7-way system may incorporate circuits for tail/running lights, left and right stop/turn signals, electric brakes, auxiliary power, reverse/auxiliary functions, and ground.
Fitment Note: Verify the number of terminals, wiring configuration, wire gauge requirements, circuit assignments, mounting dimensions, cable-entry configuration, voltage, and trailer electrical system before installation. Do not rely solely on wire colors when determining circuit connections.
Marketing Callout
SEVEN CIRCUITS. ONE CLEAN CONNECTION POINT.
Skip the tangled collection of trailer wiring splices. A 7-pole junction box brings compatible trailer circuits together in one organized location that's easier to install, inspect, and service.
